Prisms PRODUCTS >> Prisms

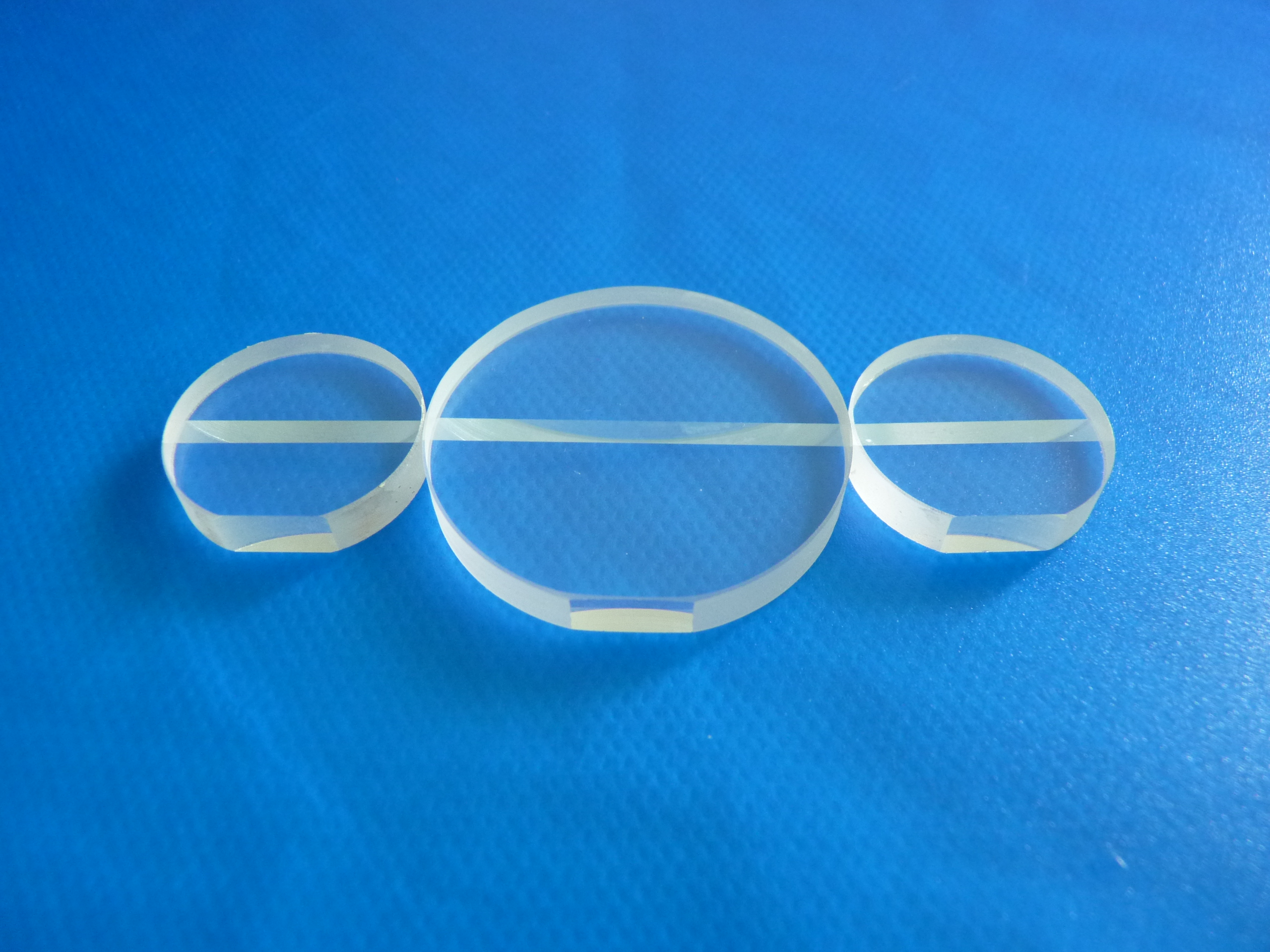

Glued prisms
Glued Prism is specially optical designed  in order to reach a targeted purpose.
PHYO can make different type prisms glueing together, OEM design or manufacturing service provided.


Spec Commercial High Precision
Material As required like H-K9L,BK7,FS As required like H-K9L,BK7,FS
Demension Tolerance +0.00/-0.20 +0.00/-0.10
90degree daviation tolerance 1-3arcmin 10/-10arcsec
45degree daviation tolerance 20/-20arcsec 3/-3arcsec
Flatness per 25mm@632.8nm L-L/2 L/4-L/8
Surface quality 60-40 40-20
Bevel 0.05-0.2 0.05-0.2
Coating AR, HR AR, HR
